Product number:
5728561020000000
Brand:
Rizoma
Club members collect 720 points for this item (€7.20).
Collect points and save on your next purchase
Members-Only Discounts
Birthday gift
Description
Product Description: Rizoma LED Indicator/Taillight Corsa S Alu M8 FR115
The Rizoma LED Indicator/Taillight Corsa S Alu M8 FR115 offers a combination of cutting-edge lighting technology and elegant design. Achieve maximum visibility thanks to extremely bright LEDs. Perfect for demanding motorcyclists.
- State-of-the-art SMD technology: Experience exceptionally bright light performance and increase your safety day and night.
- Integrated taillight/brake light: The central taillight is omitted, allowing for a clean and sleek look on your motorcycle.
- Noble aluminum housing: The robust and lightweight material guarantees durability and gives your motorcycle a high-quality look.
- Rubber foot for vibration protection: Enjoy a long lifespan of the LED units thanks to the vibration-damping design.
- Easy installation: The attachment is made via an M8x1.25 thread, making installation quick and uncomplicated.
- Dimensions and weights: With a compact size of 61 x 12 x 16 mm and a weight of 30 g, the indicator is light and aerodynamic.
Detailed Product Description:
Rizoma Corsa S Alu LED Indicator/Taillight
Very bright directional indicator with integrated taillight/brake light.
Details:
- the central taillight is omitted
- extremely bright thanks to state-of-the-art SMD technology
- noble, robust, and lightweight aluminum housing
- with rubber foot against vibrations for a long lifespan
- the necessary parts to bring the flashing frequency to an acceptable level, if the original indicator has 10 watts or 21 watts, are included - so for most models, no additional parts like resistors are necessary
- attachment via M8x1.25 thread and nut
- 12 Volt DC 1.2/0.9/1.0 Watt (indicator/taillight/brake light)

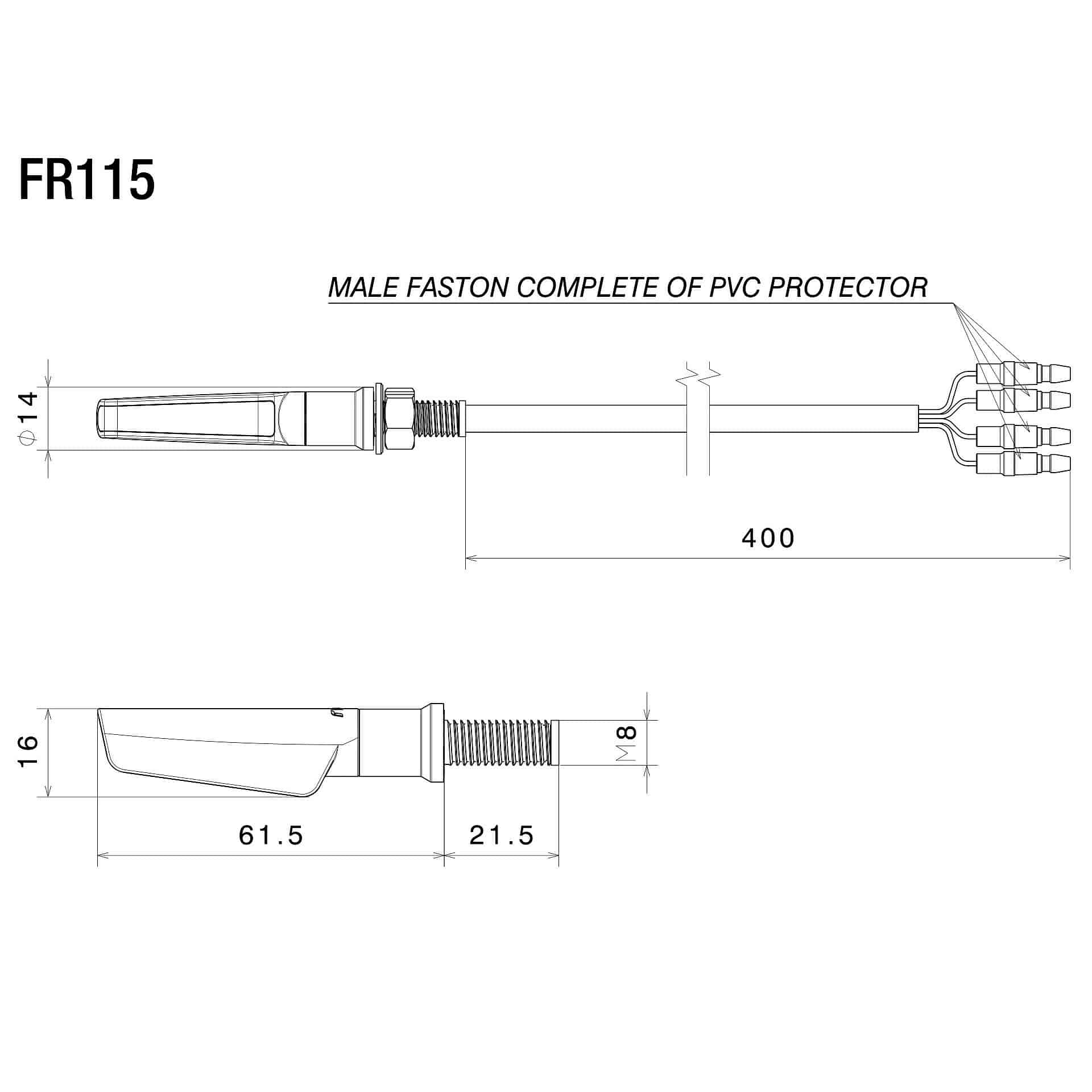

Dimensions (approx.):
Width without thread x Height x Length: 61 x 12 x 16 mm
Diameter at the foot: 14 mm
Thread length: 20 mm
Cable length: 38 cm
Ø Round plug sleeves: 3.5 mm
Weight without mounting/connection material: 30 g
Cable assignment:
black = ground for indicator and taillight
white = positive (+) for taillight
green = positive (+) for indicator
red = positive (+) for brake light
Options:
- if the legal distances cannot otherwise be maintained or simply the license plate is in the way, additional necessary suitable extensions for the indicator arm can be used (Order No. 50170003551 or 50170003561)
- for easier connection without changes to the cables of the original indicators, there are corresponding adapter cables for many manufacturers/models (Order No. 50170003460 and following as well as 50170502000 and following)
- if the installation is to take place instead of the original indicators, their mounting is usually too large - for many manufacturers/models there are suitable adapter plates with which the installation is then easily possible (Order No. 50170100000 and following)
- for models where the adjustment of the flashing frequency does not work with the supplied resistors, or resistors are not suitable due to space reasons, we recommend using the Flasher Kit 50170003453
- also available as a pure indicator (Order No. 50170500170 and following) and as an indicator with integrated front position light (Order No. 50170500180 and following)
Approval:
With E-mark.
Indicator, tail, and brake light have an E-mark and require no further documents.
They can therefore be installed without further ado, in accordance with the installation regulations.
