Description

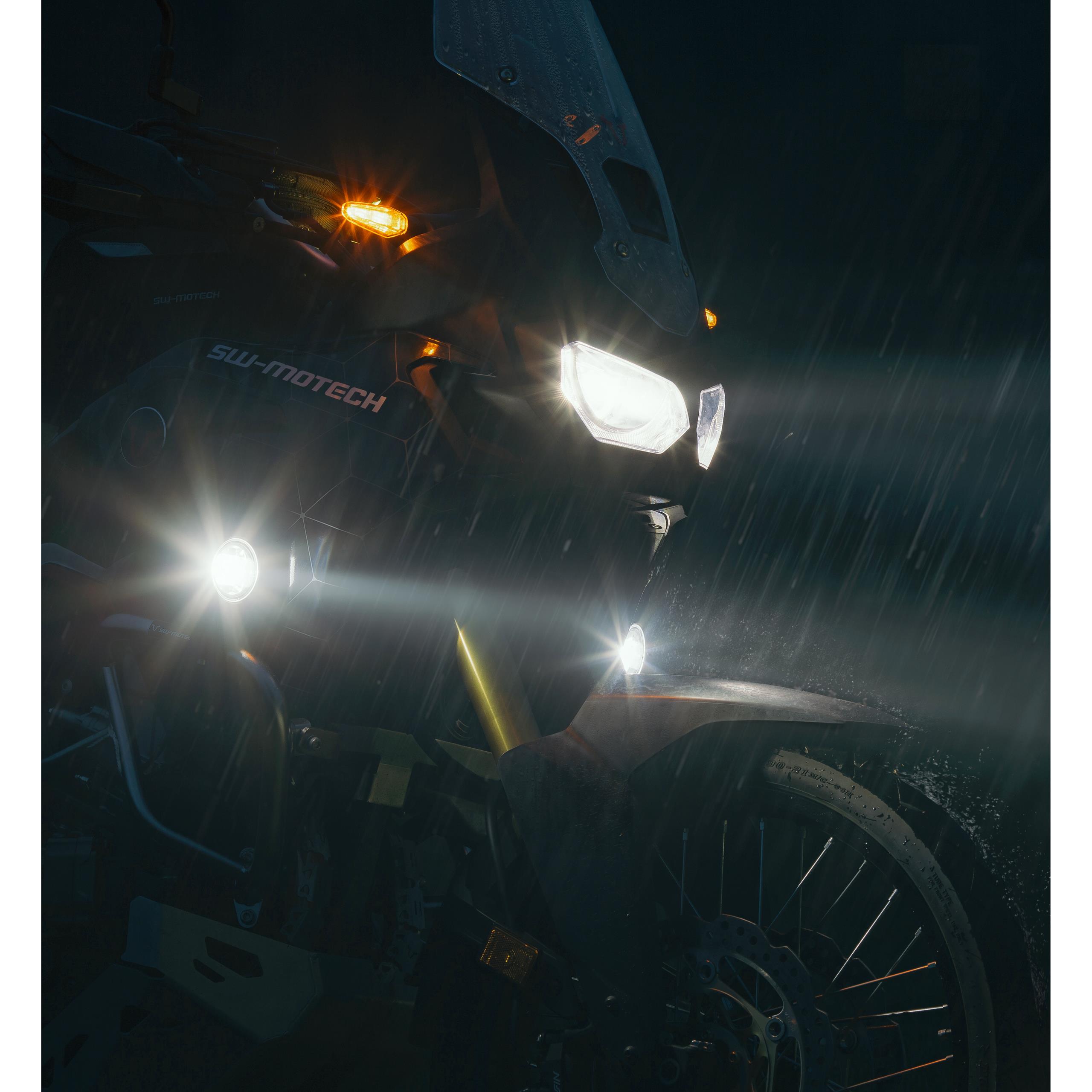

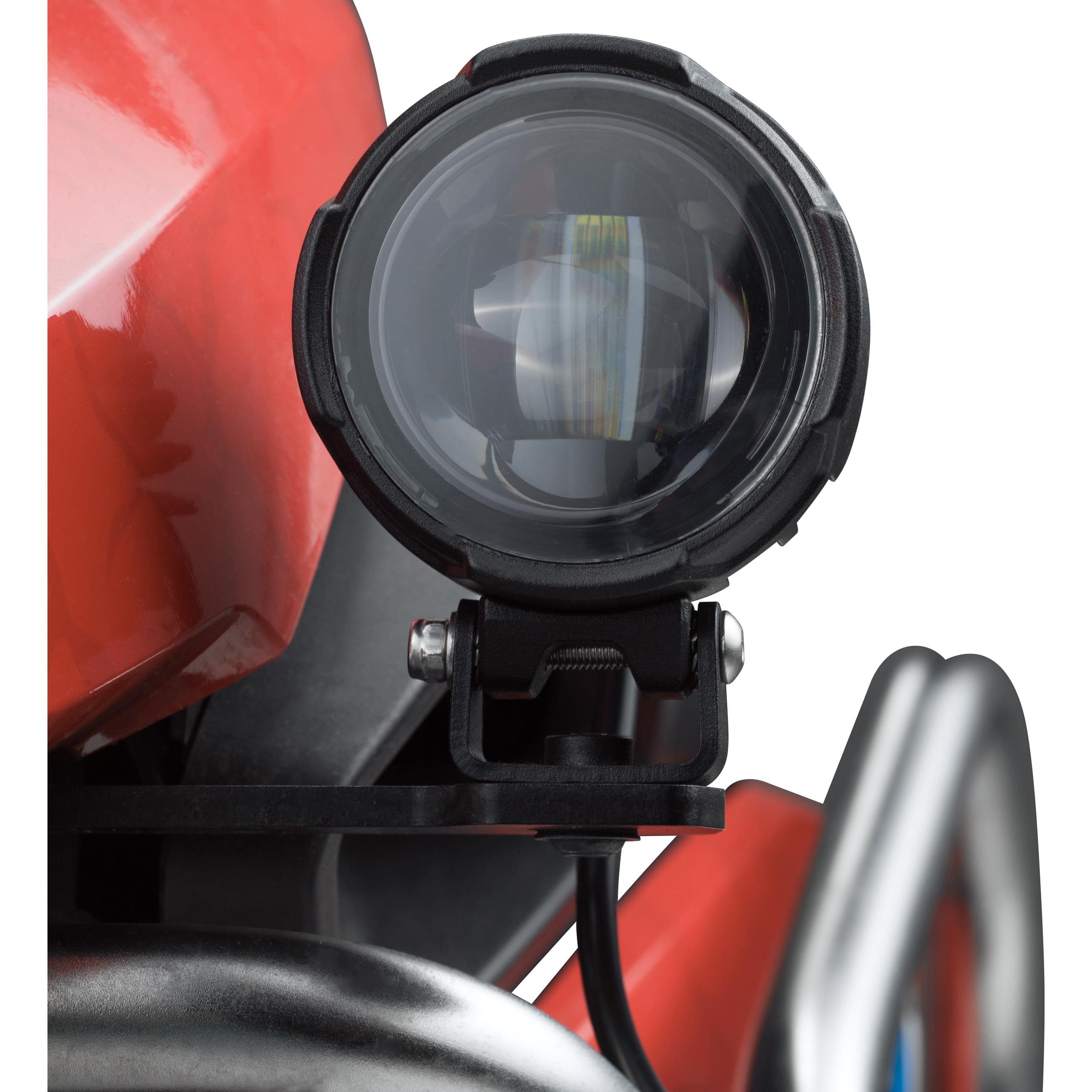

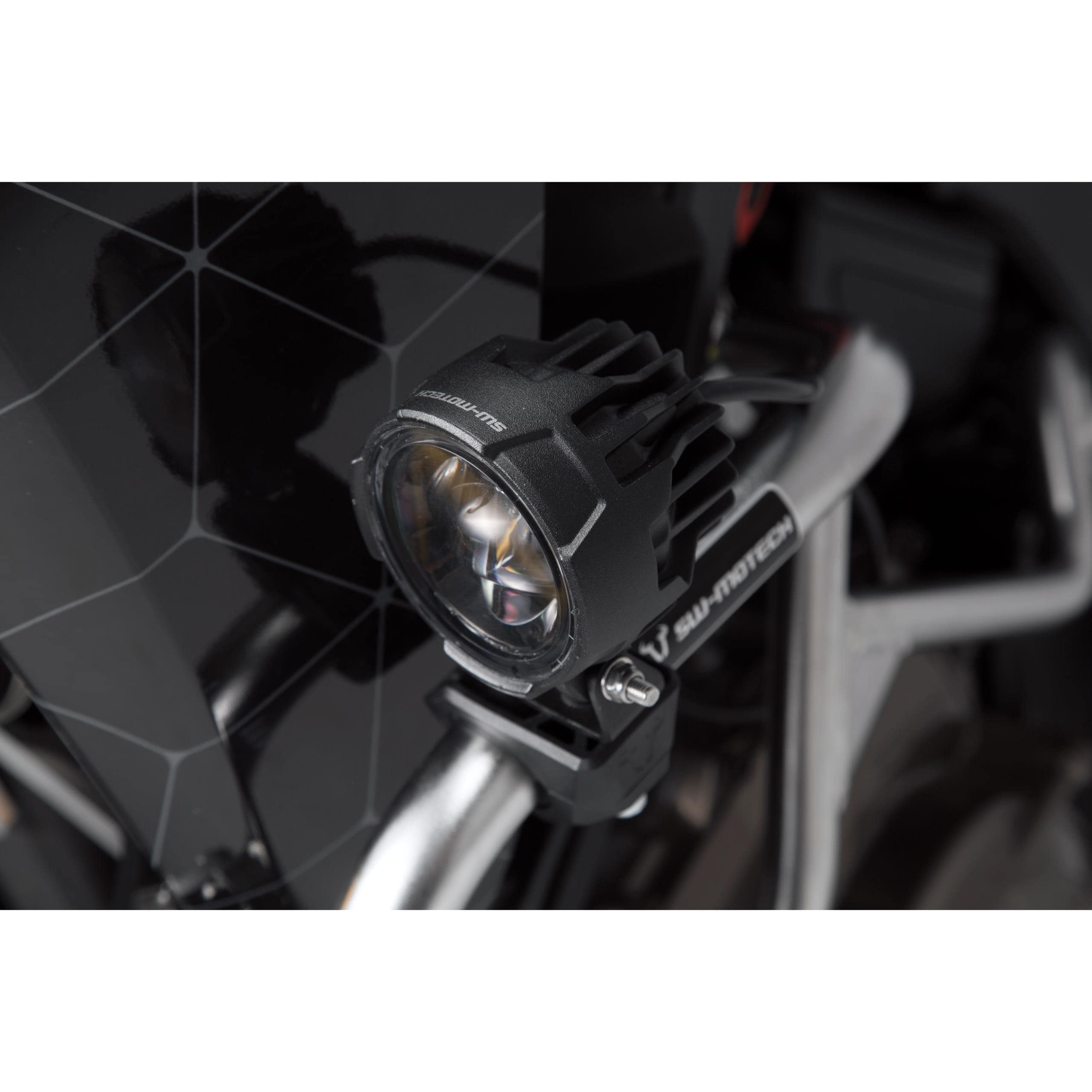

Product Description: SW-MOTECH EVO LED Fog Light Kit with Wiring Harness and Switch
Discover the SW-MOTECH EVO LED Fog Light Kit with wiring harness and switch, which illuminates your path in fog and bad weather. The durable LED technology improves visibility and being seen. Easy installation without modifications to the motorcycle's electronics.
- Durable LED Technology: The high-quality LED fog lights in a robust aluminum housing offer a wide light distribution and long range, ensuring optimal visibility even in bad weather.
- Easy Installation: The connection is made directly to the motorcycle battery. Thanks to the installation instructions, no modifications to the motorcycle's electronics are necessary.
- Resilient Design: The powder-coated aluminum housings are water and dustproof (IP69) and ensure trouble-free operation with low power consumption.
- Practical Control: A splash-proof, green-illuminated handlebar switch allows for convenient operation on the go.
- Technical Data: With an input of 12 volts and 12 watts per light, they deliver 1050 lumens. The lights have an overall diameter of 71 mm and weigh 335 g each.
- Flexible Mounting Options: The attachment is made via an M8 thread on optional mounting kits (order numbers 60290500090, 60290501000) for individual customization.
Detailed Product Description:
SW-Motech EVO LED Fog Light Kit with Wiring Harness and Switch
The fog lights with durable LED technology provide particularly wide light distribution with a long range. Ensures better "seeing and being seen" in fog or bad weather.
Details:
- high-quality auxiliary lights with LED technology in aluminum housing
- simple connection to the motorcycle battery, no changes to the motorcycle's electronics required - see installation instructions
- housing made of high-quality powder-coated aluminum
- splash-proof green-illuminated handlebar switch for convenient operation
- lights are water and dustproof (protection class: IP69)
- interference-free and maintenance-free operation due to virtually wear-free LED, significantly reduced power consumption
- input power: 12 volts, 12 watts (per light), 1050 lumens
- due to the reflector curvature, only mountable with SW-MOTECH logo facing up - mounting points on all four sides
- attachment is made via an M8 thread on the optional mounting kits (see below) or independently
Dimensions (approx.):
Overall diameter without holder: 71 mm
Length: 65 mm
Height from mounting including holder: 93 mm
Glass diameter: 60 mm
Length x Width of holder foot: 22 x 34 mm
Width x Length x Height of handlebar switch: 24 x 49 x 25 mm
Weight per piece without holder and cable: 335 g
Total weight: 1160 g
Options:
- mounting kit for universal installation, e.g. crash bars, on Ø 22, 26, 27, or 28 mm (order number 60290500090)
- model-specific mounting kits for optimal positioning also independent of crash bars (order number 60290501000 and following)
Approval (in the EU):
With E-approval.
The light has an E-mark (ECE R19 F3) and requires no further documentation.
It can therefore be installed without further ado, according to the installation regulations.
For our Swiss customers:
Please note that road legislation in Switzerland does not correspond to the EU. Clarification for approval for the Swiss motorcycle vehicle inspection must be done in-store/online before ordering. Technical articles that are rejected for registration cannot be returned. Costs may be incurred for issuing a necessary Swiss certification if the goods were not purchased in Switzerland.
Price per pair for both sides
