Product Description: SW-MOTECH Onboard Socket Dual USB 2A with Rubber Cap
The SW-MOTECH onboard socket dual USB 2A with rubber cap offers you maximum flexibility when charging. Charge two devices simultaneously while being dust and water protected. Easy installation makes it the ideal addition for your motorcycle.
- Two USB Ports: Allows simultaneous operation and charging of GPS, smartphone, or camera directly through the onboard socket.
- Voltage Conversion: Converts the 12-24 volt input voltage to 5 volts, perfect for the USB standard and optimal for your devices.
- Dust and Water Protected: The rubber cap protects against dust and water when not in use, perfect for use in any weather.
- Universal Installation: Easy mounting in fairings or other surfaces. Drill a 28 mm hole to securely install the socket.
- Direct Battery Connection: Thanks to the ring terminal for the ground cable, the socket can be connected directly to the battery for stable power supply.
- Optional Handlebar Mounting: With an additional mounting bracket (Order number 70230105111), the socket can be conveniently mounted on the handlebar clamp.
Product Description in Detail:
SW-Motech Onboard Socket Dual USB 2A with Rubber Cap
USB onboard socket for installation or attachment at any location.
Provides the ability to charge or operate two devices with USB plugs simultaneously on an onboard power socket.
Details:
- for simultaneous operation and charging of GPS, smartphone, or cameras as well as other electronic devices with USB plugs
- converts the 12-24 volt input voltage to 5 volts for the USB standard
- maximum 2000 mA charging current
- dust and water protected when not in use and the rubber cap is fully attached

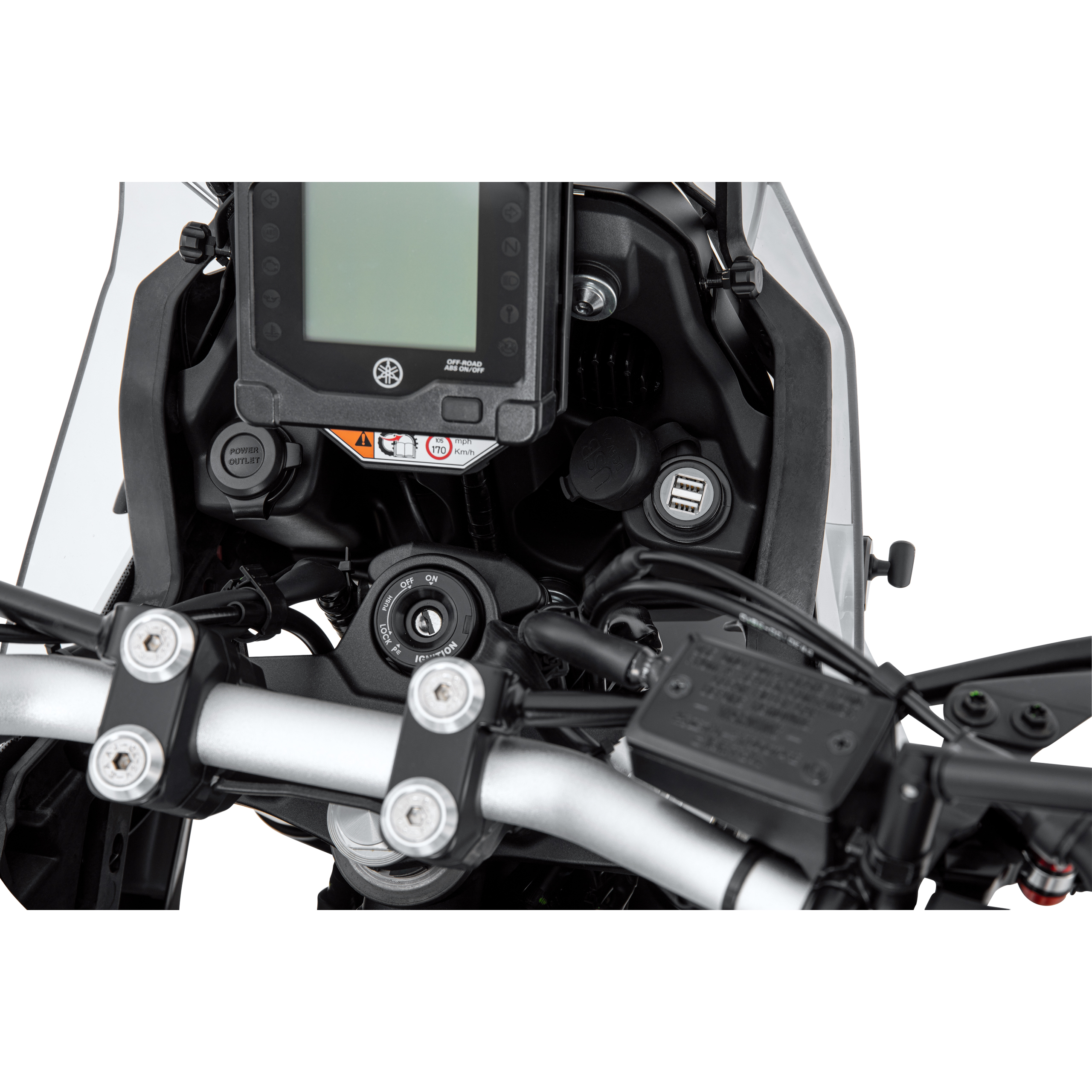

- can be installed in fairings or other surfaces, requiring only a 28 mm diameter hole at the appropriate location
- secured by the large nut on the holder or installation site

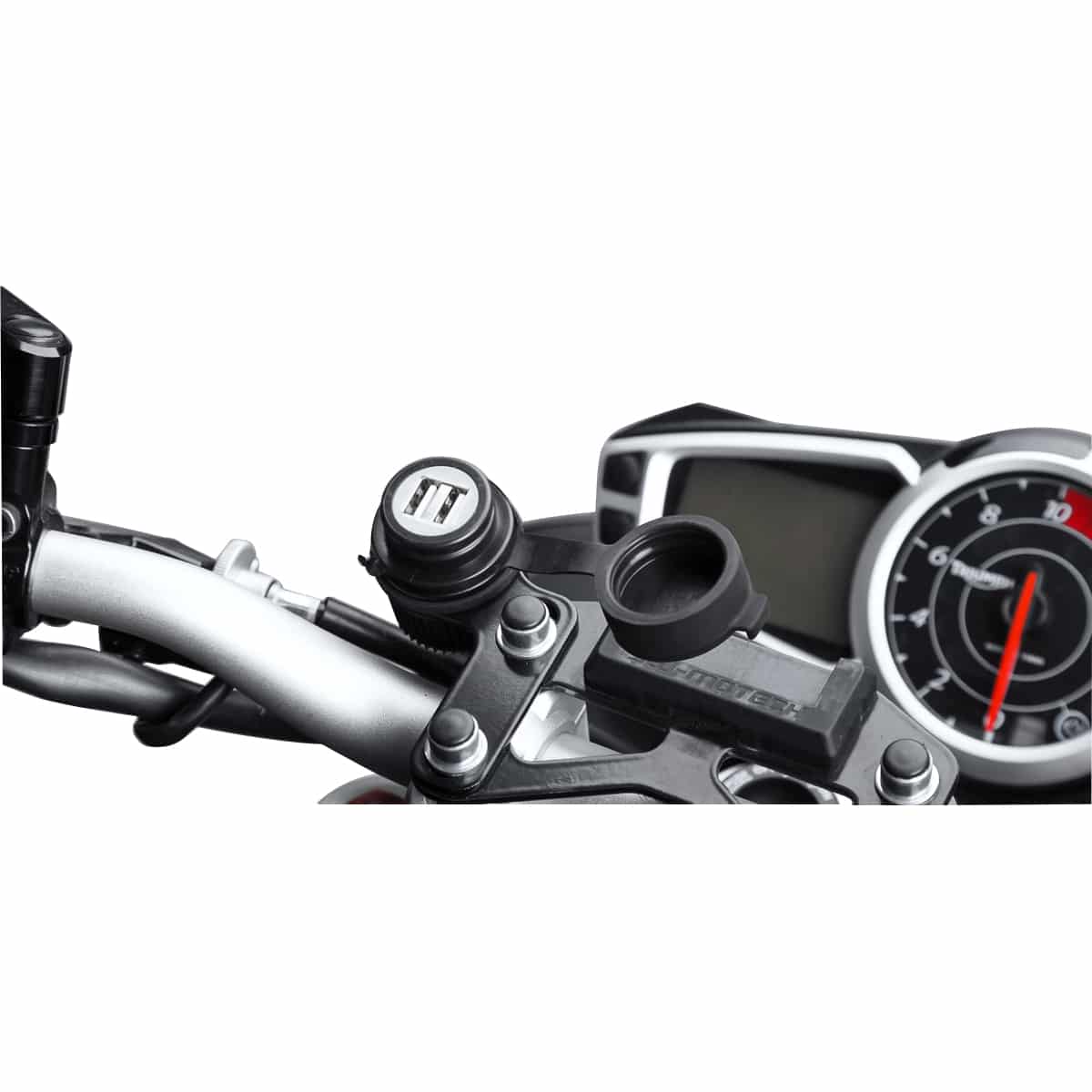

- can also be screwed to the handlebar clamp of many models with the optional adapter (see below)
- ground cable with ring terminal for direct connection to the battery
- with included tap connector for connecting the power supply to an existing cable that is also ignition-switched - so power is only available when the ignition is on
Dimensions (approx.):
Diameter: 38.5 mm
Total height: 60 mm
Height of head with cover above installation level/from holder: 22 mm
Installation depth/Depth from holder: 40 mm
Installation diameter: 28 mm
Cable length: 1200 mm
Inner diameter of ring terminal: 6.5 mm
Weight: 105 g
Connection:
red = Plus +
black = Ground -
Options:
With the additionally necessary mounting bracket, the onboard socket can be easily attached to the M8 clamp on tubular handlebars (Order number 70230105111)
Approval:
Onboard sockets do not need to be approved, therefore they do not require test marks, certificates, or ABE's.
