Description

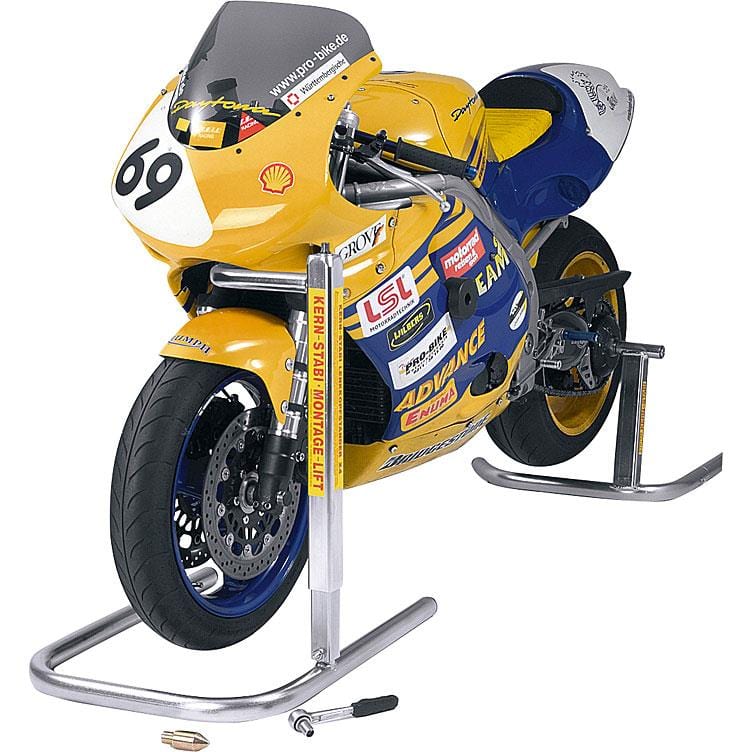

Product Description: Kern-Stabi X4 Front Stand with Threaded Spindle and Cone Mount
The Kern-Stabi X4 front stand with threaded spindle and cone mount offers an exceptionally stable solution for motorcycle maintenance. It allows for fork disassembly and fits a variety of motorcycles. Its ease of use and robust materials set it apart.
- Threaded spindle with cone mount: The innovative mount from below at the steering head allows for complete fork disassembly and provides stability for any mechanical work.
- Versatile use: The stand comes with two cone mounts for different heights and fits almost all motorcycles where the steering head tube is accessible.
- Easy operation: With a ratchet or ring spanner (SW13), the motorcycle can be effortlessly lifted up to 30 cm, facilitating maintenance.
- Robust design: With a width of 550 mm and an adjustable height of 680-990 mm, the stand offers maximum stability and safety.
- Optional accessories: A special insert for mounting the frame tubes at the steering head is available for certain BMW, Ducati, and MV Agusta models (Order number 60150201170).
Detailed Product Description:
Kern-Stabi X4 Front Stand with Threaded Spindle and Cone Mount
Perhaps the best assembly stand for mounting from below at the steering head, even for the professional mechanic or workshop!
Details:

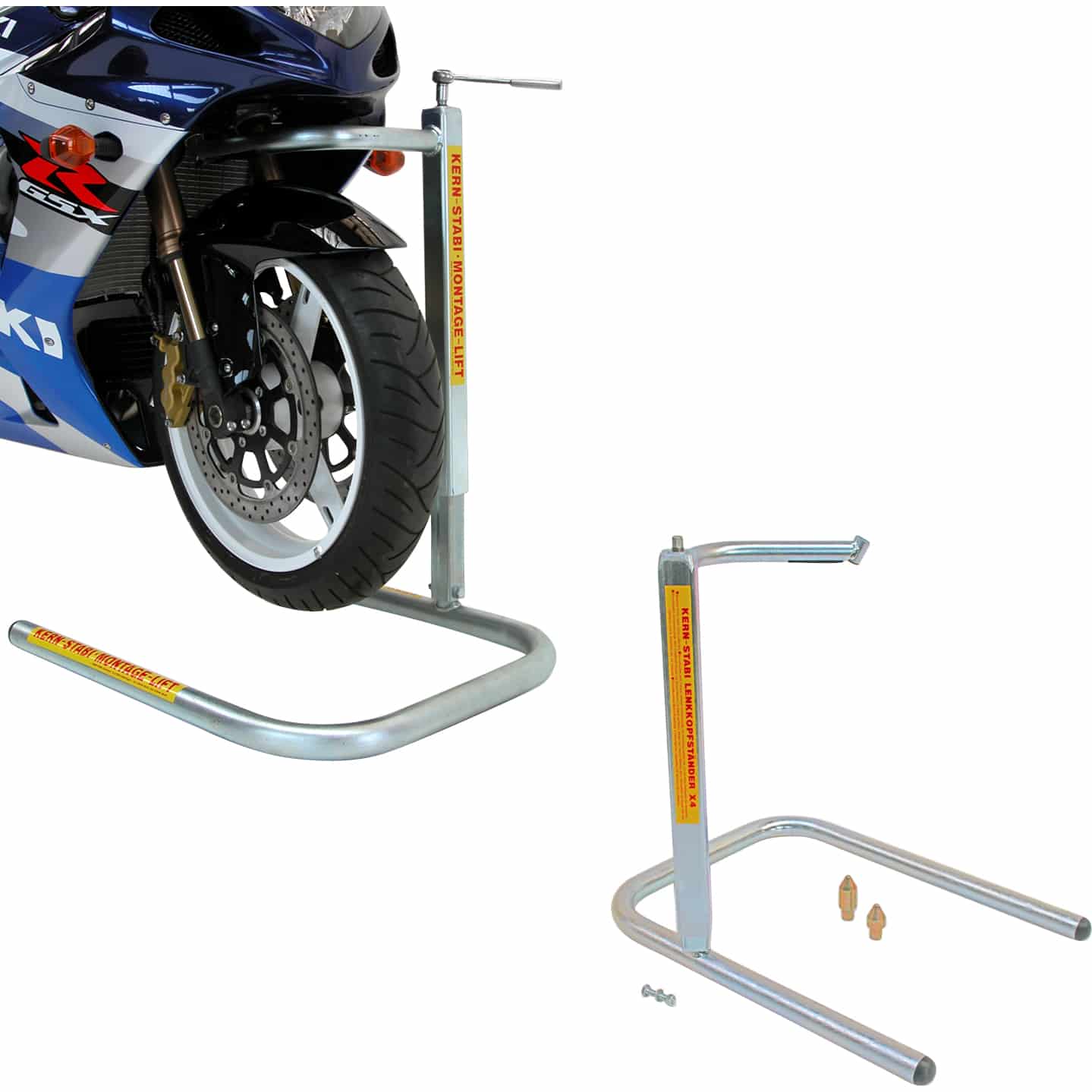

- The mount is from below at the steering head - the entire fork is removable
- With the two supplied cone mounts in different heights, it fits almost any motorcycle where the steering head tube is accessible from below - regardless of its diameter
- With a ratchet or ring spanner (SW13 - not included), the vehicle is easily lifted up to 30 cm
- More comfortable and stable is hardly possible
- WARNING: Only use in conjunction with a rear assembly stand!!
Dimensions (approx.):
Width x Height: 550 x 680-990 mm
Foot tube diameter: 42 mm
Outrigger tube diameter for steering head mount: 33.5 mm
Weight: 17.8 Kg
Options:
- Special insert for mounting the frame tubes at the steering head on many models from BMW, Ducati, and MV Agusta where the steering head tube is not accessible from below (Order number 60150201170)
