Description
Product Description: Kern-Stabi Square Base Mounting Stand 2039
The Kern-Stabi Square Base Mounting Stand 2039 offers you the ideal solution for lifting motorcycles and quad/ATV with its robust construction and flexible width adjustment. The perfect addition to any garage.
- Stable Design: The set of 4 plastic wheels ensures smooth rolling even on uneven surfaces, allowing the motorcycle to be lifted safely and easily.
- Flexible Width Adjustment: Thanks to the large width adjustment and easy fixation with the clamping screw, the mounting stand can be effortlessly adjusted and stored in a space-saving manner.
- Adjustable Lifting Height: With four mounting heights for the adapter, you can always find the right lifting height for your motorcycle, offering versatile usage possibilities.
- Fully Galvanized or Coated: The mounting stand is either fully galvanized or color-coated, ensuring durability and an appealing appearance.
- Technical Details: With a length of 59 cm and a variable width between 31-54 cm, the stand offers sufficient stability and flexibility for various uses.
- Versatile Adapter Options: Various adapters allow for front or rear lifting, suitable for almost any motorcycle model and purpose (see order numbers).
Detailed Product Description:

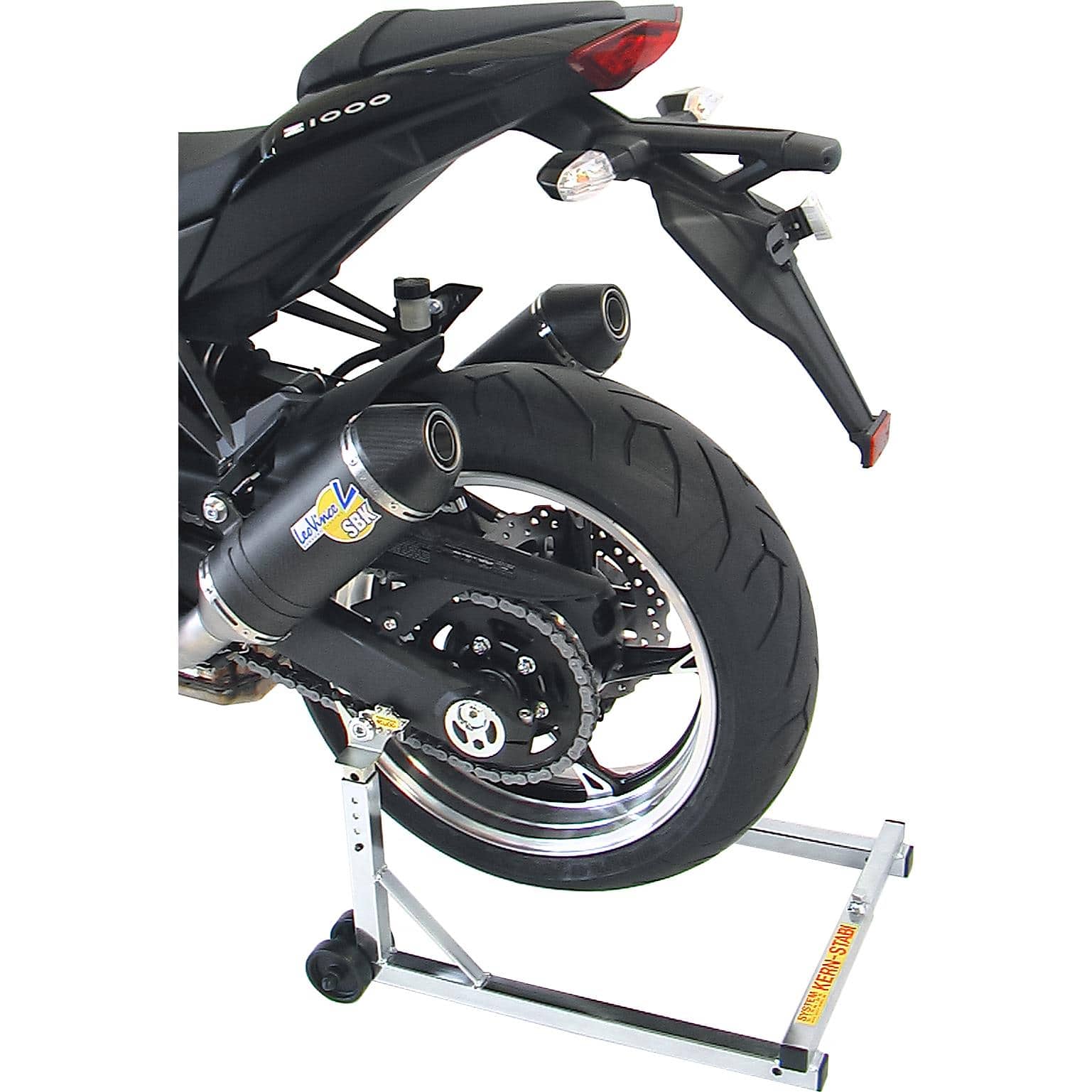

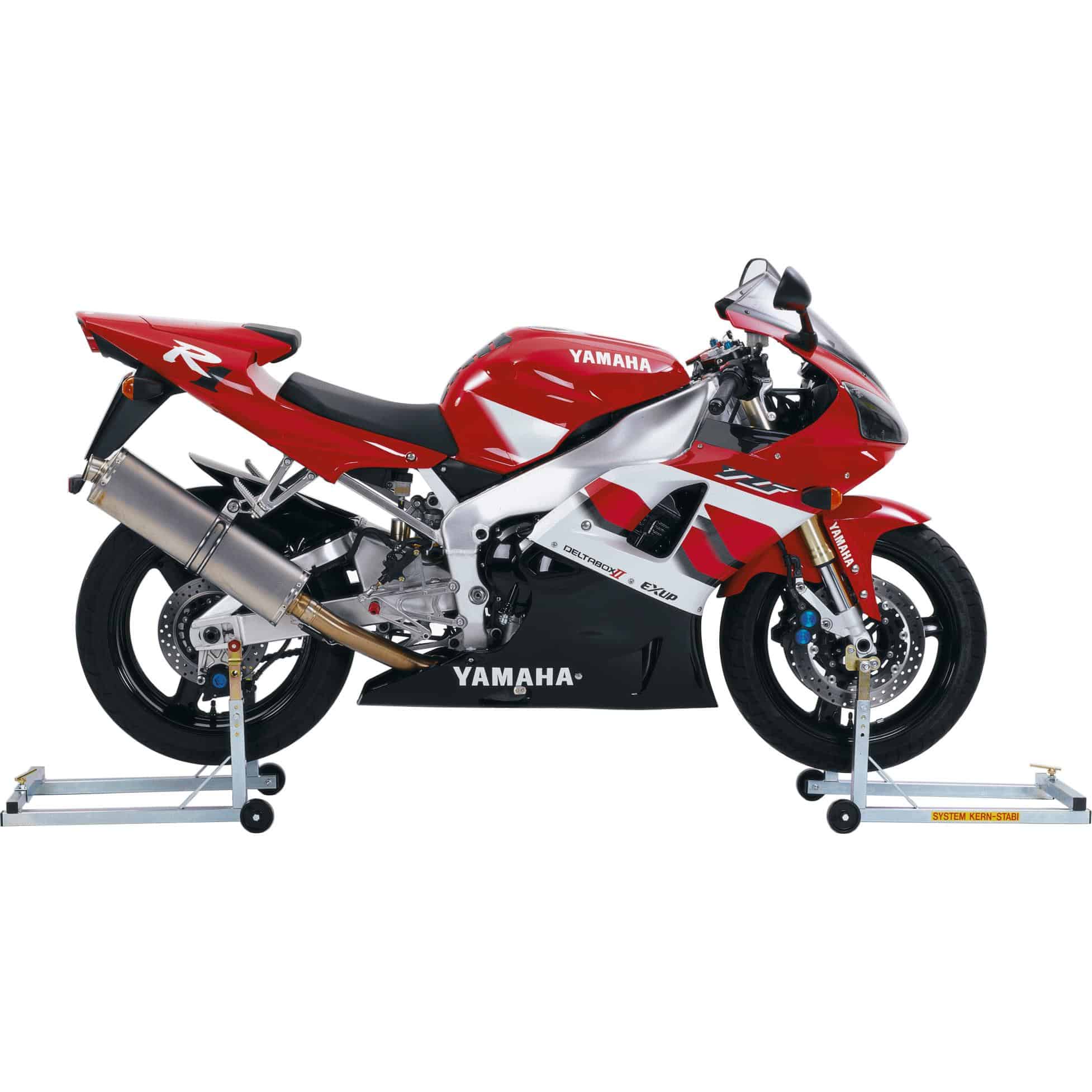

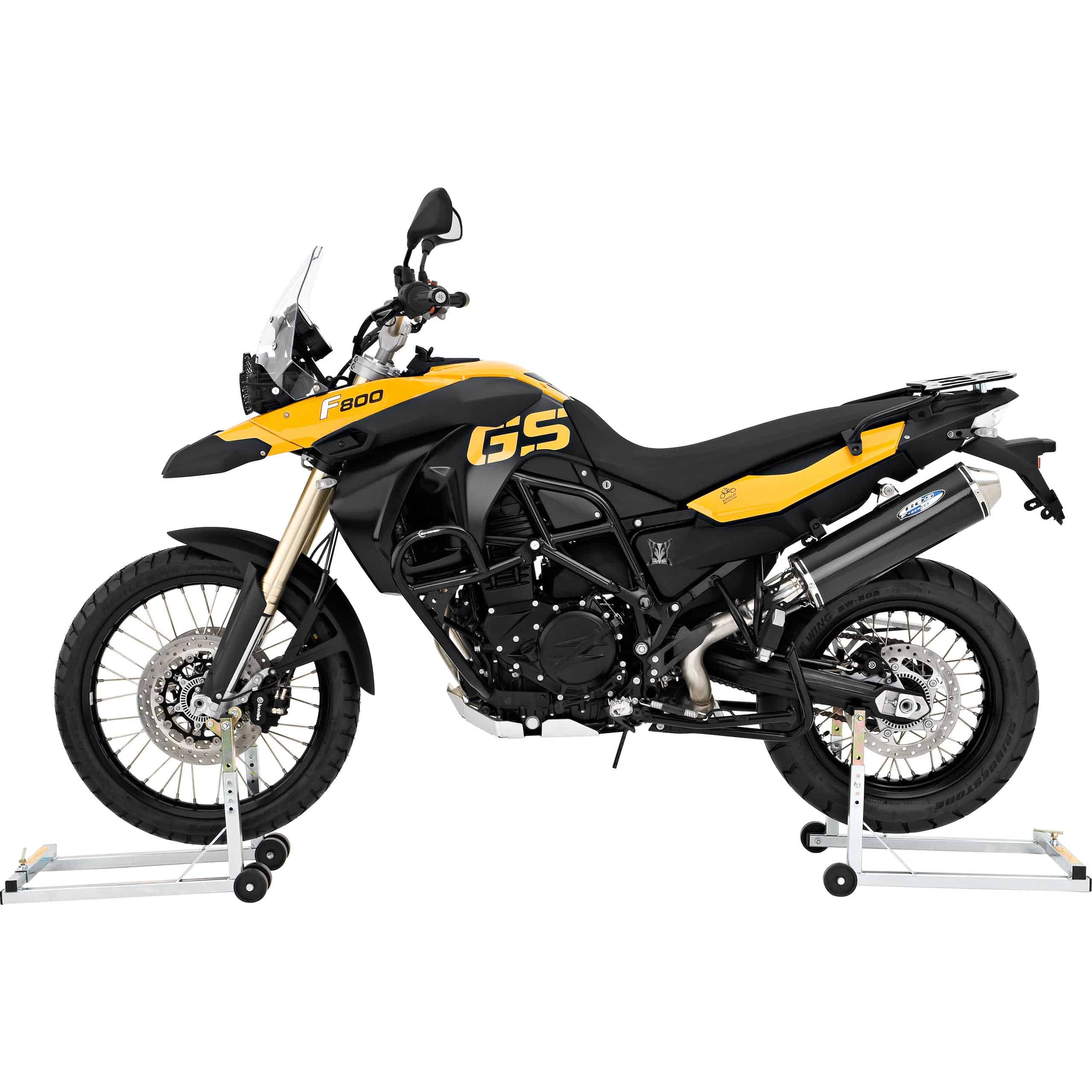

Kern-Stabi Square Base Mounting Stand 2039 without Adapter
With its stability and very large width adjustment, the classic from Kern-Stabi convinces.
With the additionally required adapters, it is suitable for lifting motorcycles and quad/ATV at the front or rear.
Optionally, it can also be maneuvered with the motorcycle lifted.
Details:
- The set of 4 plastic wheels ensures smooth rolling when lifting, even on uneven surfaces
- This allows for quite easy lifting without needing too much space (e.g., when storing at the back of the garage)
- Once the width is set, it can be easily fixed with the clamping screw without tools and released again if necessary
- With the 4 mounting heights for the adapters, the appropriate lifting height can always be found
- Fully galvanized (silver) or color-coated
- WARNING: The appropriate adapter for the motorcycle and purpose for front or rear is still necessary!
- Simply select the adapter below in the options that fits the desired purpose
Dimensions (approx.):
Length: 59 cm
Width without wheels: 31-54 cm
Width between standing square mounts: 24-47 cm
Height: 26.5 cm
Height of the 4 mounting points for the adapters: 18.5/20.5/22.5/24.5 cm
Width x Height of outer square: 30 x 30 mm
Width x Height of inner square for adapter: 26 x 26 mm
Diameter x Width per wheel: 75 x 23 mm
Weight: 4150 g
Options:
- For rear: With the fully rubberized mounting angles, almost any motorcycle can be lifted under the swingarm (Order number 60150200060) - of course not for models with single-sided swingarm
- For rear: Racing adapter with rollers in M6, M8, M10 or M12 for motorcycles with threaded mounts on the swingarm (Order number 60150200240, 60150200170, 60150200180 or 60150200190)
- For rear: Click racing adapter with rollers in M6/M8 or M10 for motorcycles with threaded mounts on the swingarm (Order number 60150201381 or 60150201371) - makes slipping when lifting or from the lifted motorcycle nearly impossible
- For front and rear: Adapter for mounting in the hollow axle at the front or rear wheel (Order number 60150201910, 60150201911 or 60150201912)
- For front and rear: With the quad adapter, most quads and ATVs can be easily lifted at the axles front or rear (Order number 60150201150)
- For front: With the front rocker, most motorcycles and scooters can be lifted under the fork with a secure stand (Order number 60150200230)
- For front: Adapter for mounting in the struts of radially mounted brake calipers or in the recesses under the front fork tubes (Radial & Pin Order number 60150201930)
- For front: Front adapter for mounting on the fork for all BMW models (K 1200-K1600) with Duolever (Order number 60150201550)
- For front: With the steering head adapter, the motorcycle can be lifted at the front so that the fork is completely free and removable (Order number 60150101160, 60150101161, 60150101162) - the matching pin for the model is additionally necessary
- Accessories: With the maneuvering set, the entire mounting stand including the lifted motorcycle or quad/ATV can be easily moved in all directions (Order number 60150201850)
- Accessories: The clickable extension lever provides a larger lever arm and makes lifting even easier (Order number 60150200202)
Approval:
Mounting stands and their adapters do not need to be approved, therefore they do not require test marks, certificates, or ABEs.
Price per piece without adapter
