€79.00
Available, delivery time: 18.04.26 - 20.04.26
€79.00
{{ store.zipCode }} {{ store.city }}
- {{ translateDay(store, weekDay.number) }}:
- {{ formatTime(businessHour.businessHour.start) }} - {{ formatTime(businessHour.businessHour.end) }}
Description

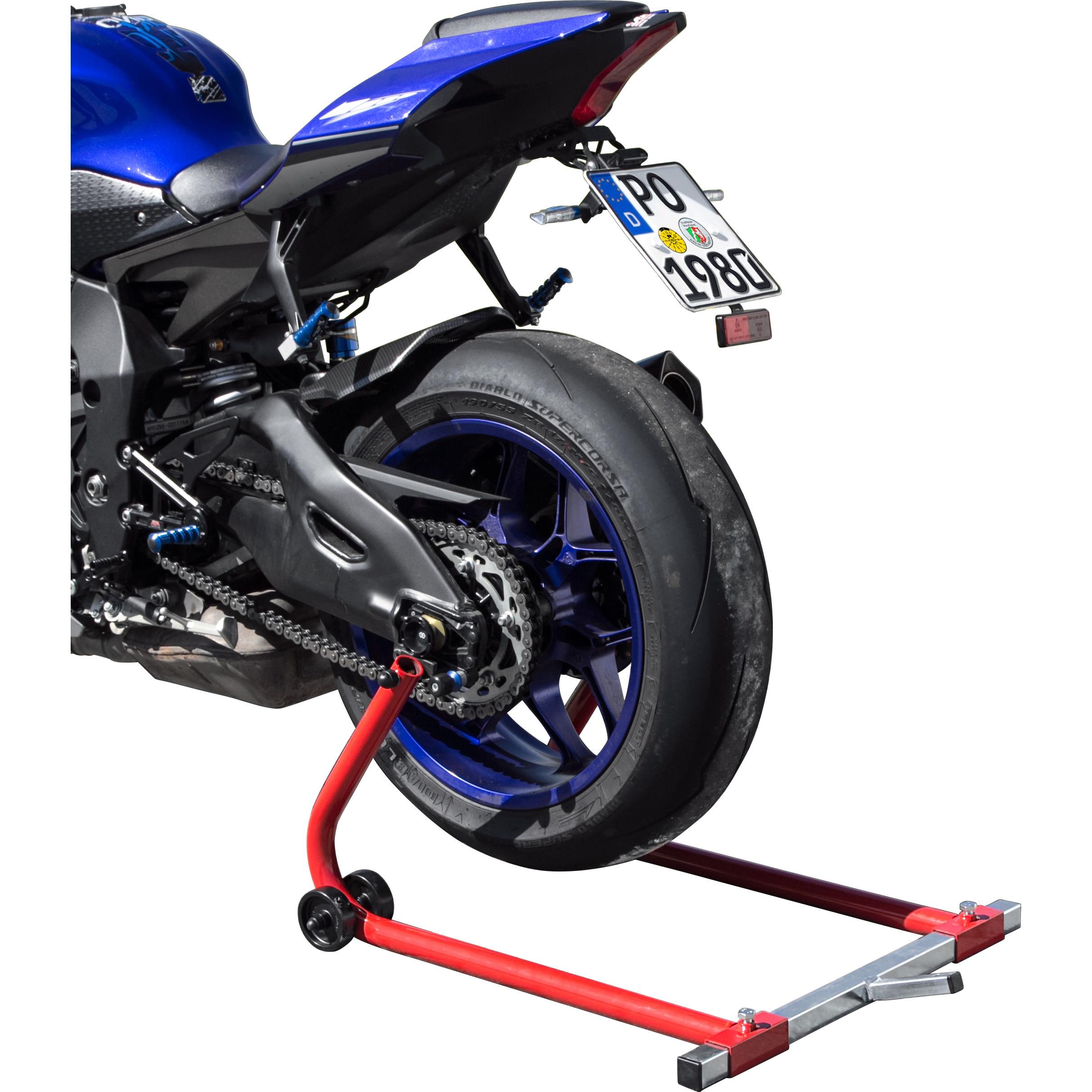

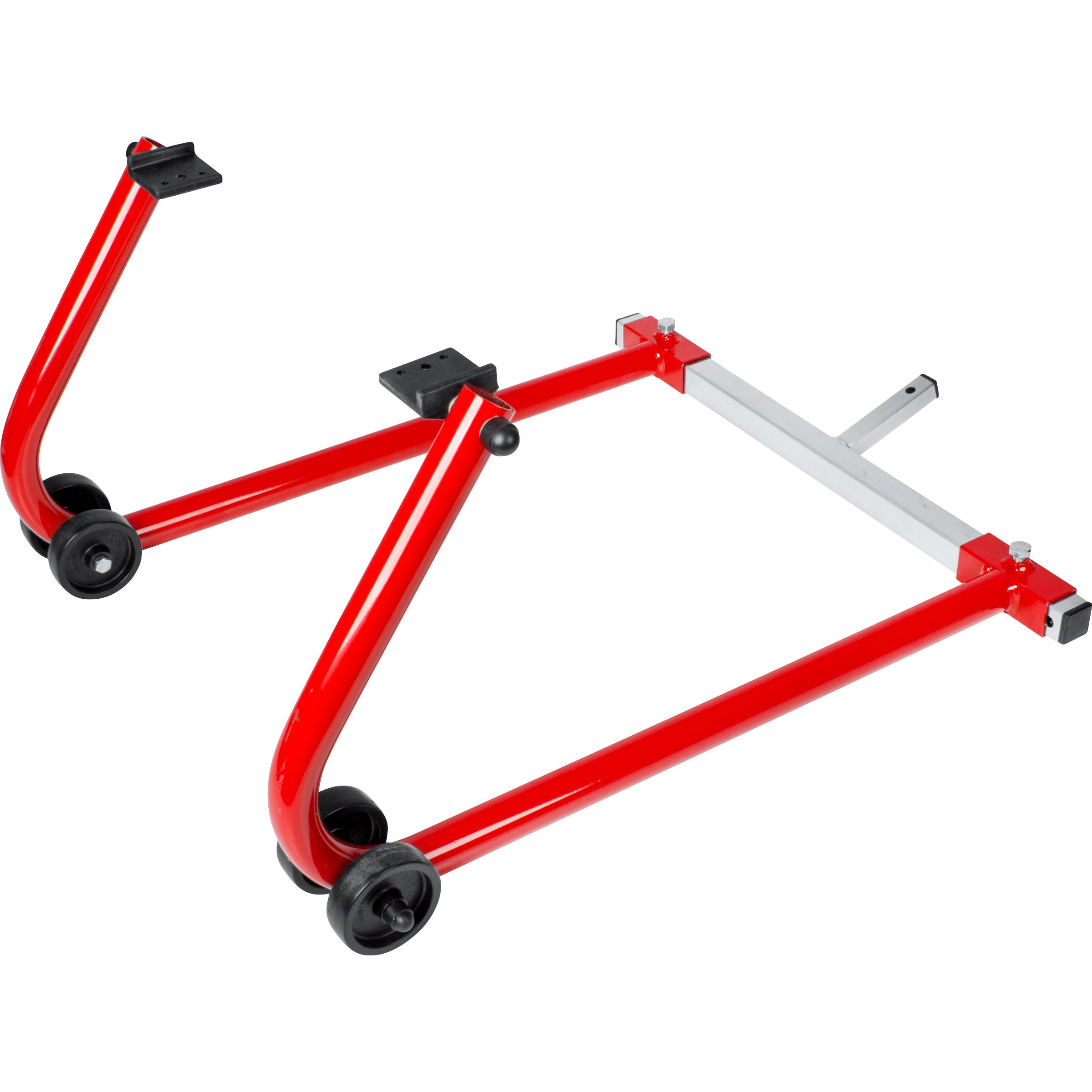

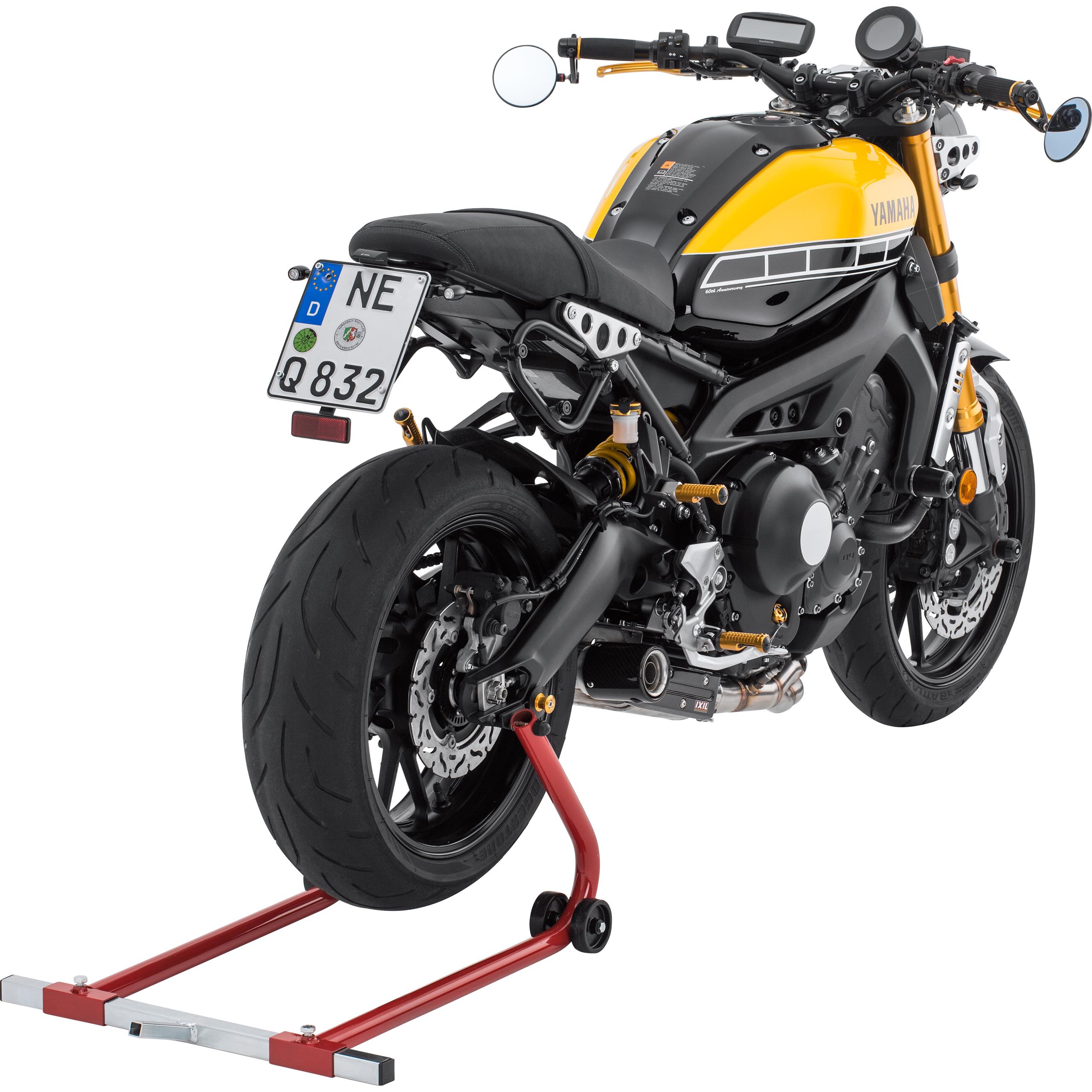

Product Description: Kern-Stabi Sport Stand 33mm Red Rear
Discover the Kern-Stabi Sport Stand 33mm Red, your reliable partner for all motorcycle service work. Robust, individually adjustable, and manufactured with German quality.
- 33 mm Precision Steel Tube: The stand is made from super stable, powder-coated precision steel tube and offers maximum stability with every use.
- Individually Adjustable: The stand can be adjusted over a very wide range in width, making it suitable for almost all motorcycles.
- Double Rollers for Stability: Equipped with rubberized double rollers for stable rolling when lifting and lowering, your motorcycle always remains securely in position.
- Rubberized Mounting Angles: The metal mounting angles are completely rubberized to prevent scratching the swingarm and ensure a secure hold.
- Technical Details: With a weight of 6.3 kg and dimensions of 78 x 55 x 35 cm, the stand offers a mounting surface height of 34 cm when lifted.
- Optional Extensions: For even easier lifting, extension levers and racing adapters are available, specifically adapted to the swingarm's threaded inserts (Order No. 60150200201, 60150200470).
Detailed Product Description:
Kern-Stabi Sport Stand 33mm Red Rear
Affordable rear stand in the thoughtful Kern-Stabi quality - Made in Germany!!
Details:
- Suitable for almost all motorcycles without additional parts (not for models with single-sided swingarm)
- Individually adjustable over a very wide range in width

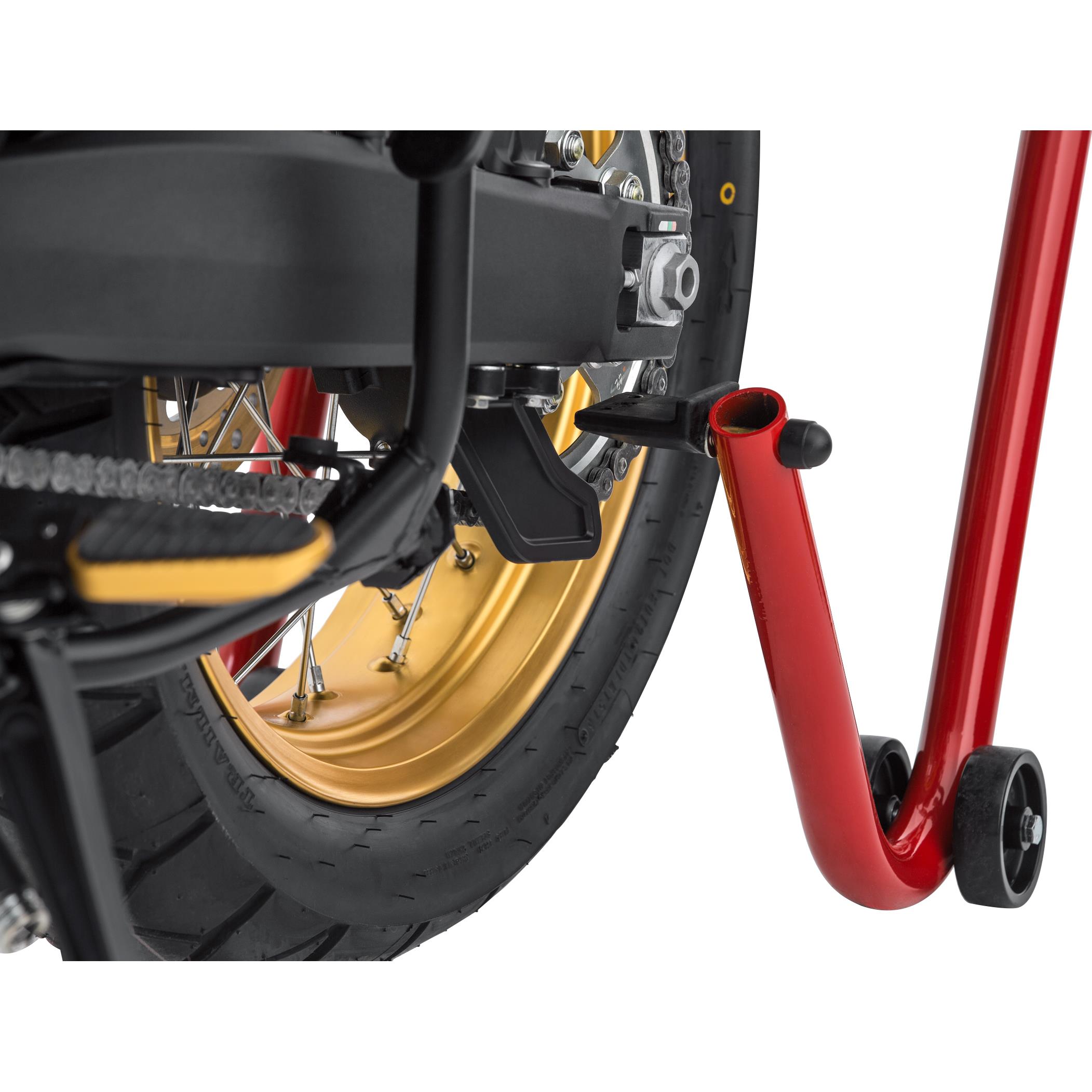

- The included mounting angles are simply placed under the swingarms
- The metal mounting angles are completely rubberized to prevent scratching the swingarm
- Equipped with double rollers, it offers very stable rolling when lifting and lowering
- Made from powder-coated super stable precision steel tube with a diameter of 33 mm
- Stable stand for maintenance and assembly work
- Great help for all service work such as lubricating the chain, cleaning the rim, changing tires, etc.
Approximate Dimensions:
Distance of the mounting angles: 0-46 cm
Mounting surface of the angles Length x Width: 53 x 45 mm
Height of the mounting surface when lifted: 34 cm
Total Length x Width x Height: 78 x 55 x 35 cm
Weight: 6.3 Kg
Options:
- The extension lever for even easier lifting (Order No. 60150200201)
- With the racing adapters, the motorcycle can also be mounted on the threaded inserts of the swingarm, if available (Order No. 60150200470, 60150200440, 60150200450 or 60150200460)
- The click racing adapters allow even more secure lifting on the threaded inserts of the swingarm (Order No. 60150201360 or 60150201350)
Price per piece (including mounting angles for under the swingarm)
