Description
Product Description: Kern-Stabi Quad Adapter Front/Rear for Square Stand
The Kern-Stabi Quad Adapter Front/Rear for Square Stand offers flexible use with rubberized mounting angles. Robust, steel-core reinforced rubber provides protection.
- Rubberized Mounting Angles: Protect the axles of your quad or ATV with robust, steel-core reinforced mounting angles that prevent scratches.
- Versatile Attachment: The V-pieces can be flexibly attached under axles, frame tubes, or control arms, allowing for a wide range of applications.
- Adjustable Height: Two screw heights on the adapter and four on the base stand allow you to find the optimal height for your vehicle.
- Quick Click System: With the spring-loaded click system, you can quickly change the adapters or adjust the height for maximum flexibility.
- Suitable Dimensions: The V-braces have a diameter of 18 mm, and the height of the support surface can be adjusted between 115 mm and 175 mm.
- Compatibility: Suitable for the base square mounting stand, order numbers 60150100030, 60150100031, and 60150100032, for a complete lifting solution.
Detailed Product Description:

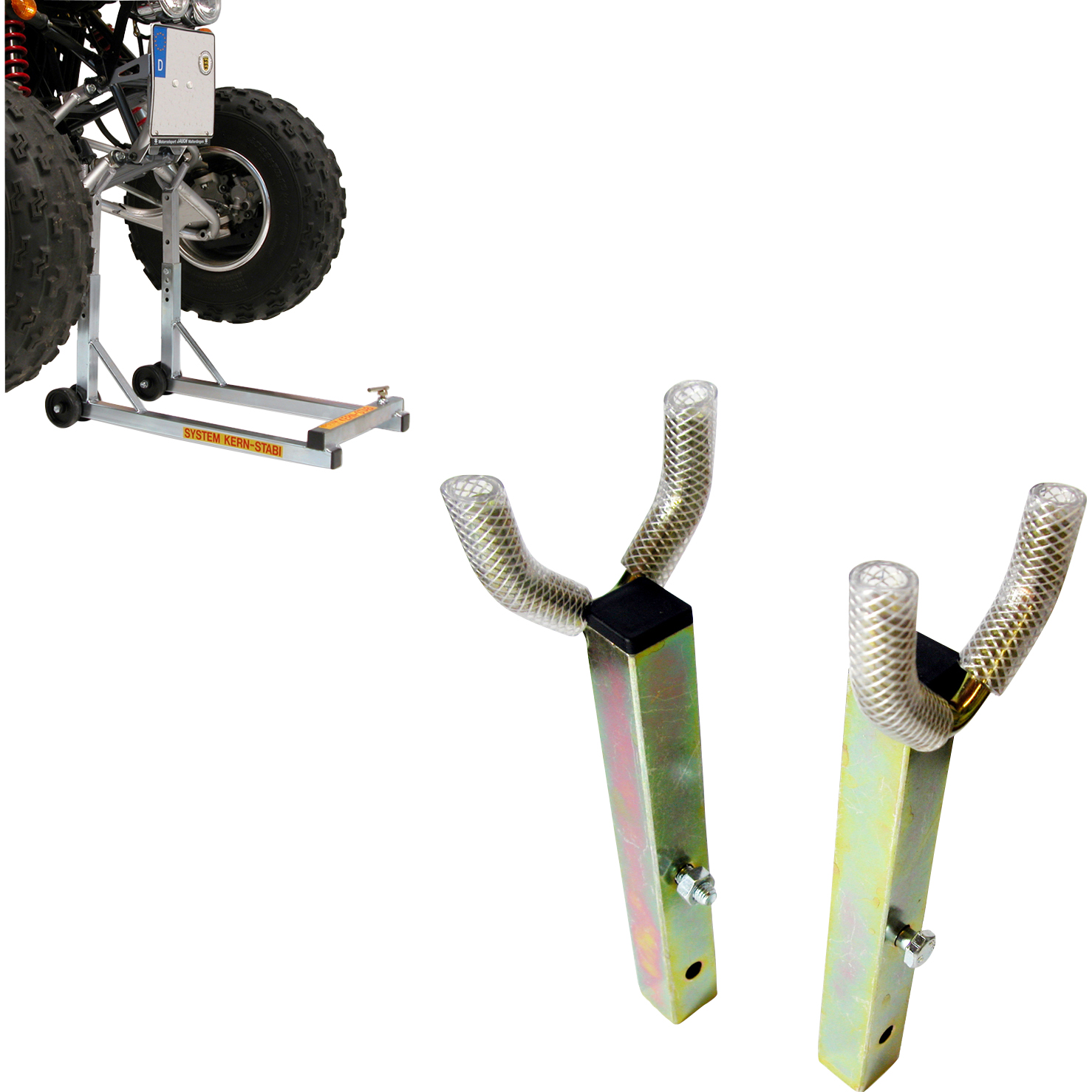

Kern-Stabi Quad Adapter Front/Rear 2032 for Square Stand

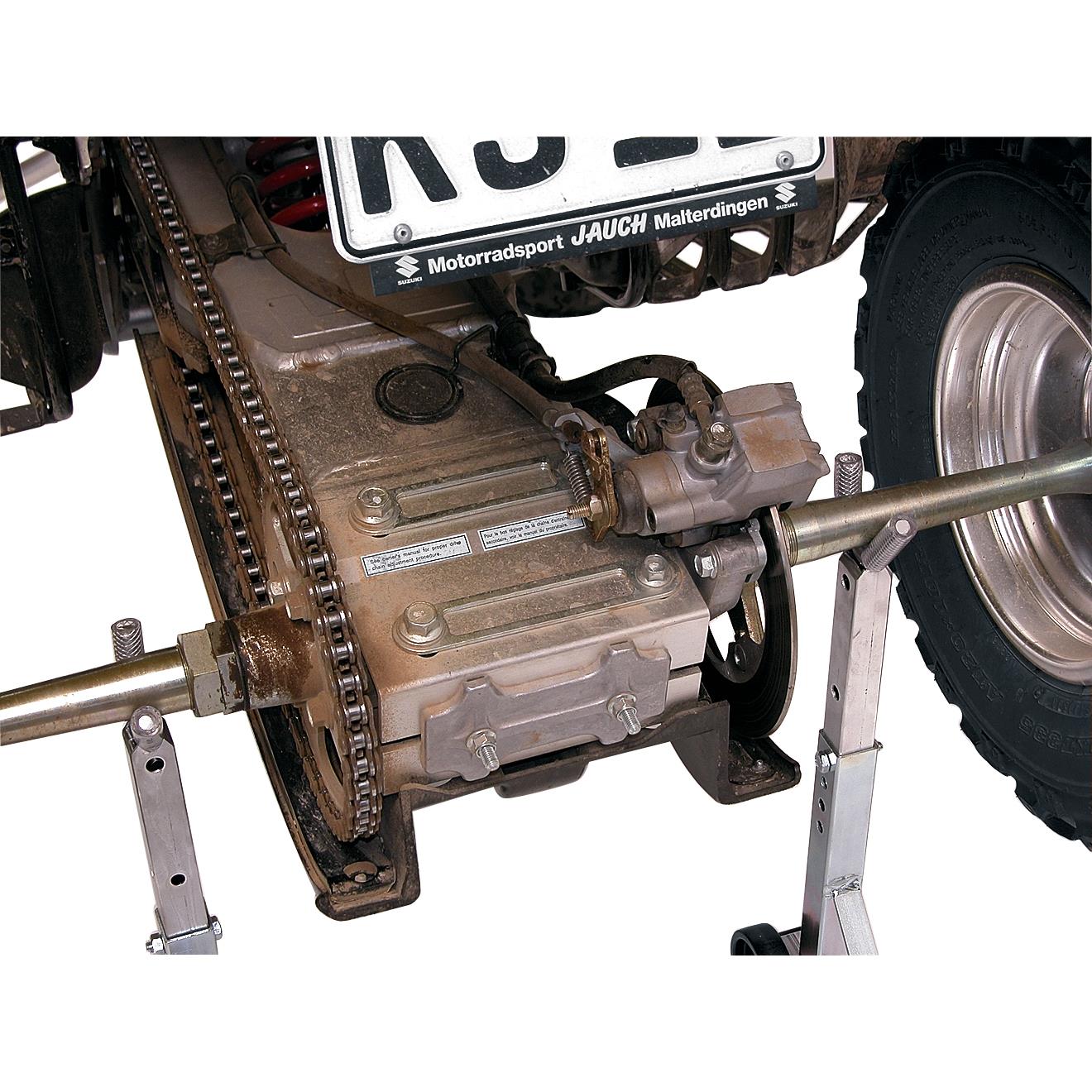

Rubberized mounting angles with a solid steel core accommodate the axles of almost any quad/ATV at the front or rear.

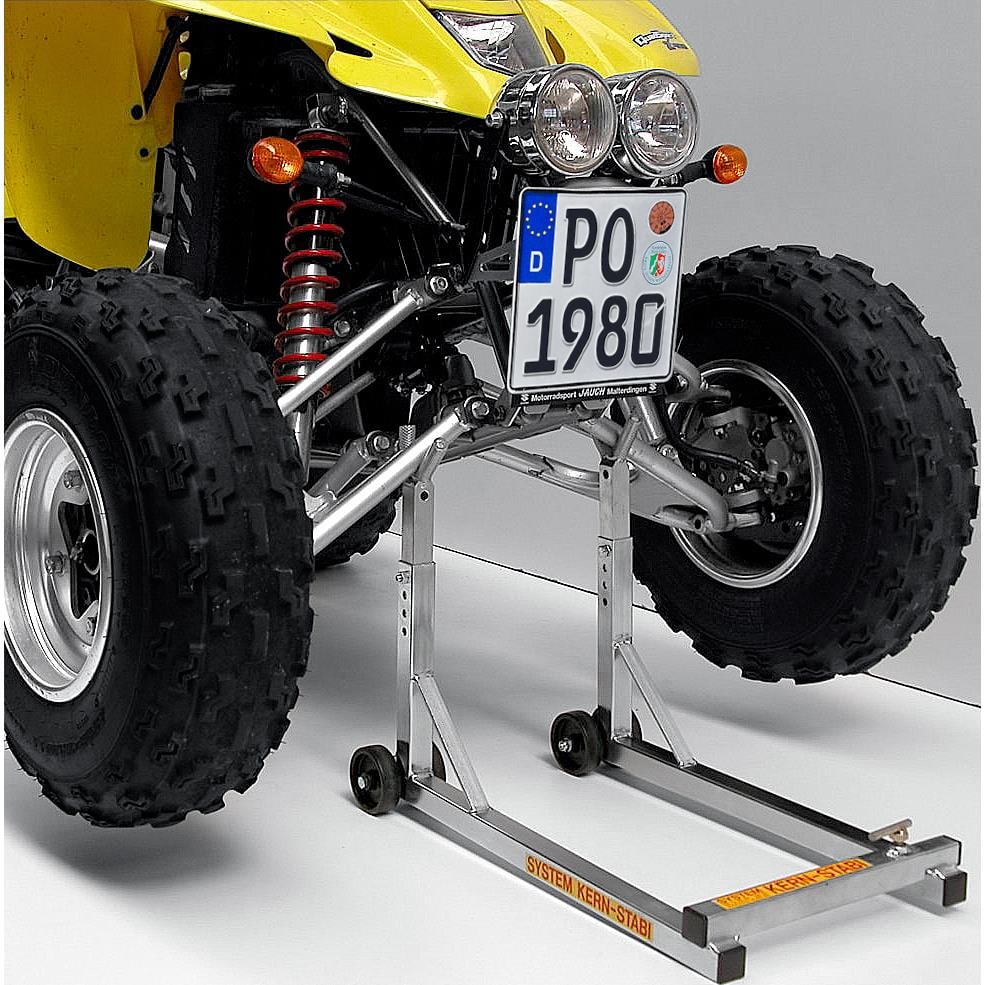

Turns the base square mounting stand into both a rear and front lifting device.
Details:
- The V-pieces are easily positioned under the axle or control arms
- Depending on the model, this can also be done under frame tubes or similar
- Due to its extremely robust rubber coating with a steel inner core, scratching of parts, if clean, is not possible!
- Adjustable width of the mounting stand fits almost all conditions
- With the 2 screw heights on the adapter and 4 on the base stand itself, the optimal height can always be found
- The adapters can be securely screwed or quickly changed or adjusted in height with the included spring-loaded click system
- WARNING: The mounting stand is still additionally required!
Dimensions (approx.):
Ø of the V-braces: 18 mm
Distance between V-tips: 60 mm
Height of support surface from screw point in mounting stand: 115 or 175 mm
Cross-section of square: 25 x 25 mm
Weight: 750 g
Options:
Base Square Mounting Stand (Order numbers 60150100030, 60150100031, and 60150100032)
Approval:
Mounting stands and their adapters do not require approval, therefore no test marks, certificates, or ABE's are needed.
Price per pair without mounting stand
