Product number:
5641121149001850
Brand:
Kern-Stabi
Club members collect 479 points for this item (€4.79).
Collect points and save on your next purchase
Members-Only Discounts
Birthday gift
Description
Product Description: Kern-Stabi Maneuvering Set 2039RS 360° for Square Stands
The Kern-Stabi Maneuvering Set 2039RS 360° for square stands revolutionizes the handling of your motorcycle. Thanks to its innovative double rollers, your bike can be effortlessly moved in all directions. Perfect for space-saving storage in any garage.
- Wide Double Rollers: The original plastic rollers are replaced by sturdy double rollers that are widely spaced on each side. This provides you with maximum maneuverability and stability.
- Additional Side Rollers: Additional rollers are used at the ends towards the crossbar, making it even easier to move the motorcycle in tight spaces.
- Smooth-Rolling Wheels: The high-quality roller positioning ensures that lifting and moving are a breeze. Perfect for regular use in your workshop.
- Space-Saving Positioning: The maneuvering set allows you to optimally place your motorcycle against the garage wall, saving valuable space.
- Robust Construction: The widely spaced support points offer excellent stability, even on uneven surfaces or in confined spaces.
- Technical Dimensions: Roller diameter 50 mm, weight 3985 g, additional width per side 95 mm, additional length at the rear 120-180 mm. The perfect addition for those who appreciate precision.
Detailed Product Description:

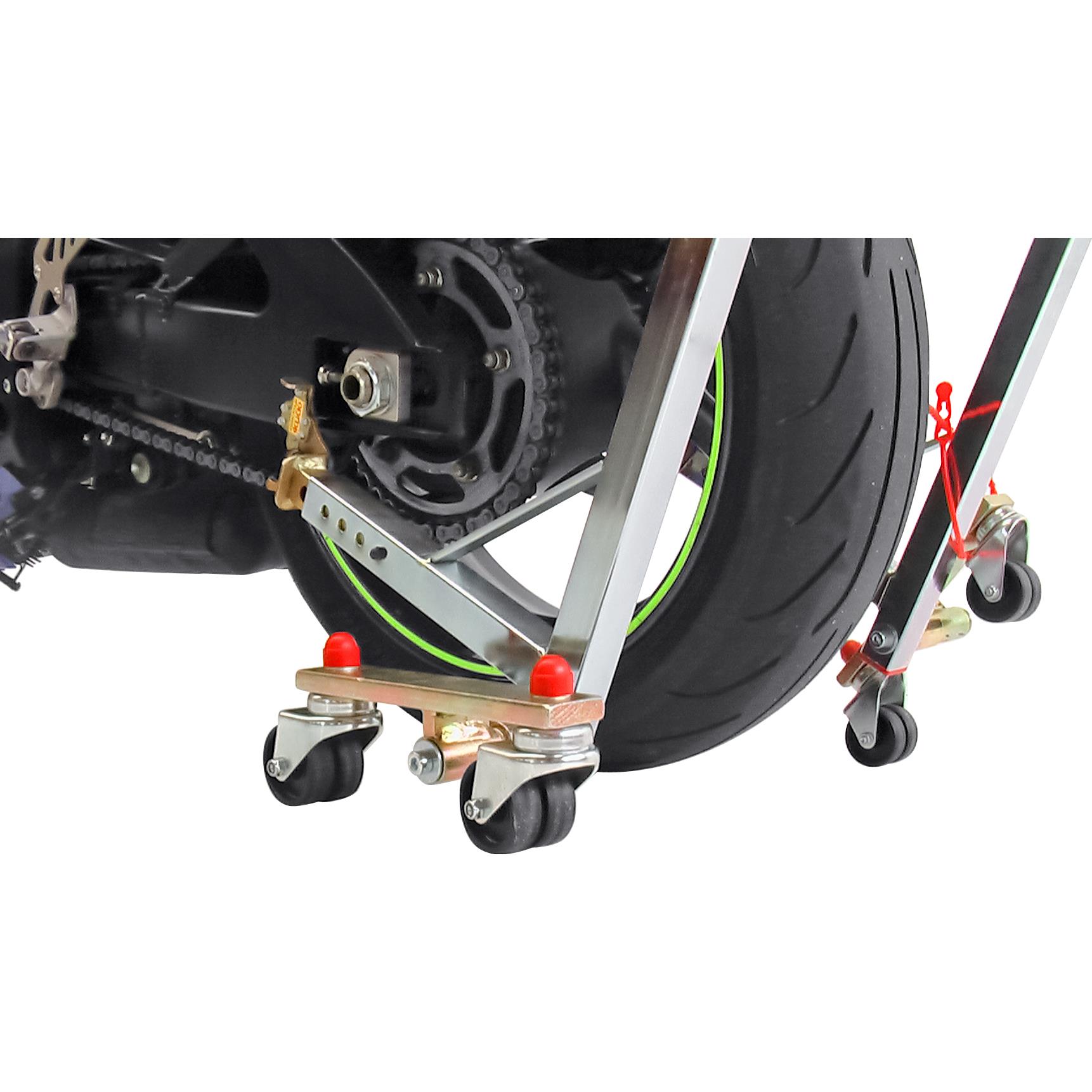

Kern-Stabi Maneuvering Set 2039RS 360° for Square Base Stand 2039
Allows the motorcycle mounted on the square stand to be moved in all directions.
Details:
- replaces the original plastic rollers on the stand with widely spaced double rollers on each side
- additional rollers are used at the ends towards the crossbar
- very smooth-rolling wheels and their positioning make lifting and moving the mounted motorcycle very easy
- enables space-saving positioning of the motorcycle, e.g., against the garage wall
- super stable due to widely spaced support points
- CAUTION: the stand itself and the appropriate mounts for the motorcycle are additionally required!!
Dimensions (approx.):
Roller diameter: 50 mm
Distance between side rollers center/center on one side: 170 mm
additional width from the stand per side: 95 mm
additional length at the rear from the stand: 120-180 mm
Height underside stand to the ground: 25 mm
Weight: 3985 g
Options:
- suitable square stand (Order number 60150100030, 60150100031 or 60150100032)
- please use the maneuvering set only if the motorcycle is mounted using the click-racing adapter (Order number 60150201350 and following) or with the axle set (Order number 60150201910). With other mounting types, a secure stand CANNOT be guaranteed under all circumstances!!
Approval:
Stands and their adapters do not need to be approved, therefore do not require test marks, certificates, or ABE's.
Price per piece without stand and motorcycle mounts
