Description

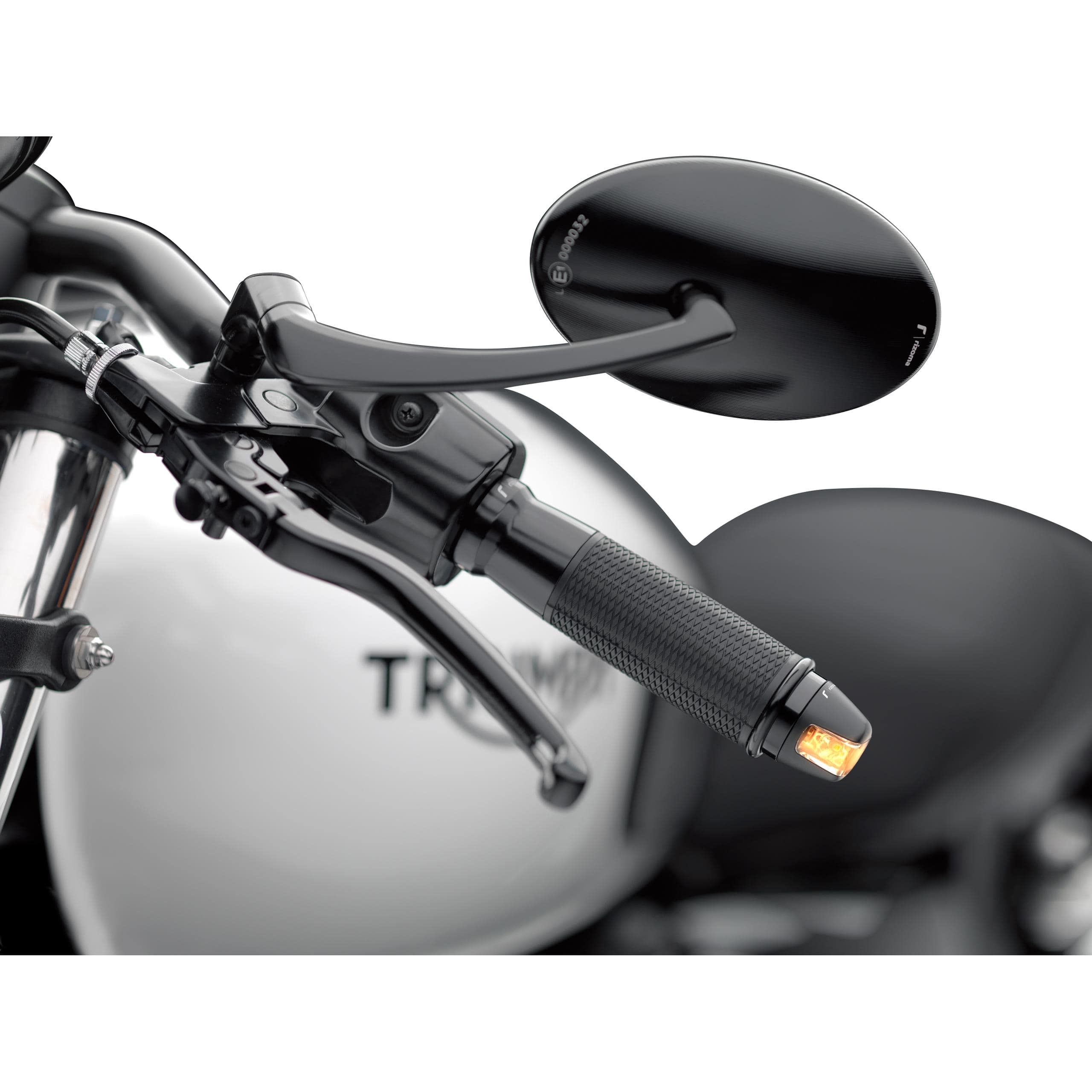

Product Description: Rizoma LED Handlebar End Turn Signal Sguardo 13-21mm FR060
The Rizoma LED Handlebar End Turn Signal Sguardo 13-21mm FR060 combines innovative design with top functionality. Perfect visibility, compact construction, and stylish appearance make it the ideal companion. It can be easily integrated into various handlebars and guarantees maximum safety.
- Clear Design: The Rizoma LED Handlebar End Turn Signal Sguardo impresses with its simple elegance and seamlessly integrates into the overall look of your motorcycle.
- High-Quality Materials: Made from robust billet aluminum, the turn signal not only offers an appealing look but also a long lifespan.
- Powerful LED Technology: Equipped with SMD LEDs, the turn signal provides extremely bright light and ensures the best visibility even in difficult lighting conditions.
- Versatile Fit: Suitable for almost all handlebars with an inner diameter of 13 mm, whether 22 mm or 25.4 mm, the turn signal can be mounted in various ways.
- Optimized Flash Frequency: The delivery includes the necessary material to adjust the flash frequency to the permissible level even in models without LED turn signals.
- Practical Options: For special adjustments, the Flasher Kit 50170003453 and suitable adapter cables (50170502000 and following) are available to facilitate installation.
Detailed Product Description:
Rizoma Sguardo Handlebar End Turn Signal FR060
Front direction indicator for mounting at the handlebar end.
Details:
- clear design
- made from high-quality billet aluminum
- LED technology in SMD design for very bright light and best visibility
- fits almost all 22 mm or 25.4 mm (inch) handlebars with an inner diameter of 13 mm
- 12 volts, 1.4 watts
- comes with material to adjust the flash frequency to the permissible level even in most models if the original does not have LED turn signals
Options:
- for models where the adjustment of the flash frequency does not work with the supplied parts, or these parts are not suitable due to space constraints, we recommend using the Flasher Kit 50170003453
- adapter cables that make changing the original connections unnecessary are also available for most models (50170502000 and following)
- if an additional handlebar end mirror is to be mounted, which is otherwise clamped around the handlebar or handlebar weight, these adapters (Order No. 50170501020 and following) enable it

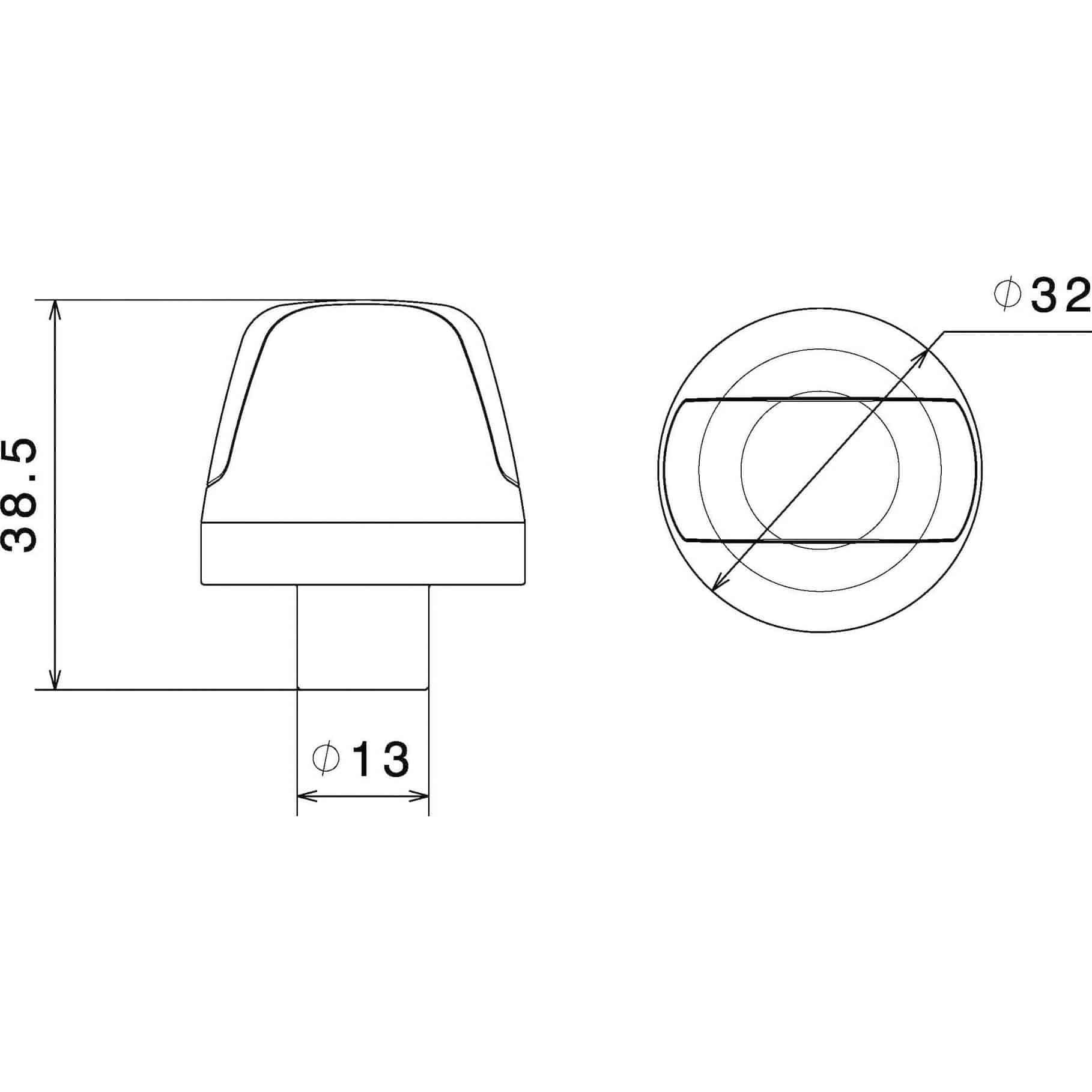

Dimensions (approx.):
Housing Length x Ø 30 x 32 mm
Cable Length: 64 cm
Weight: 60 g
Approval:
With E-mark as a front turn signal.
The turn signals have an E-mark and do not require any additional documents.
They can therefore be installed in accordance with installation regulations without further ado.
