Description

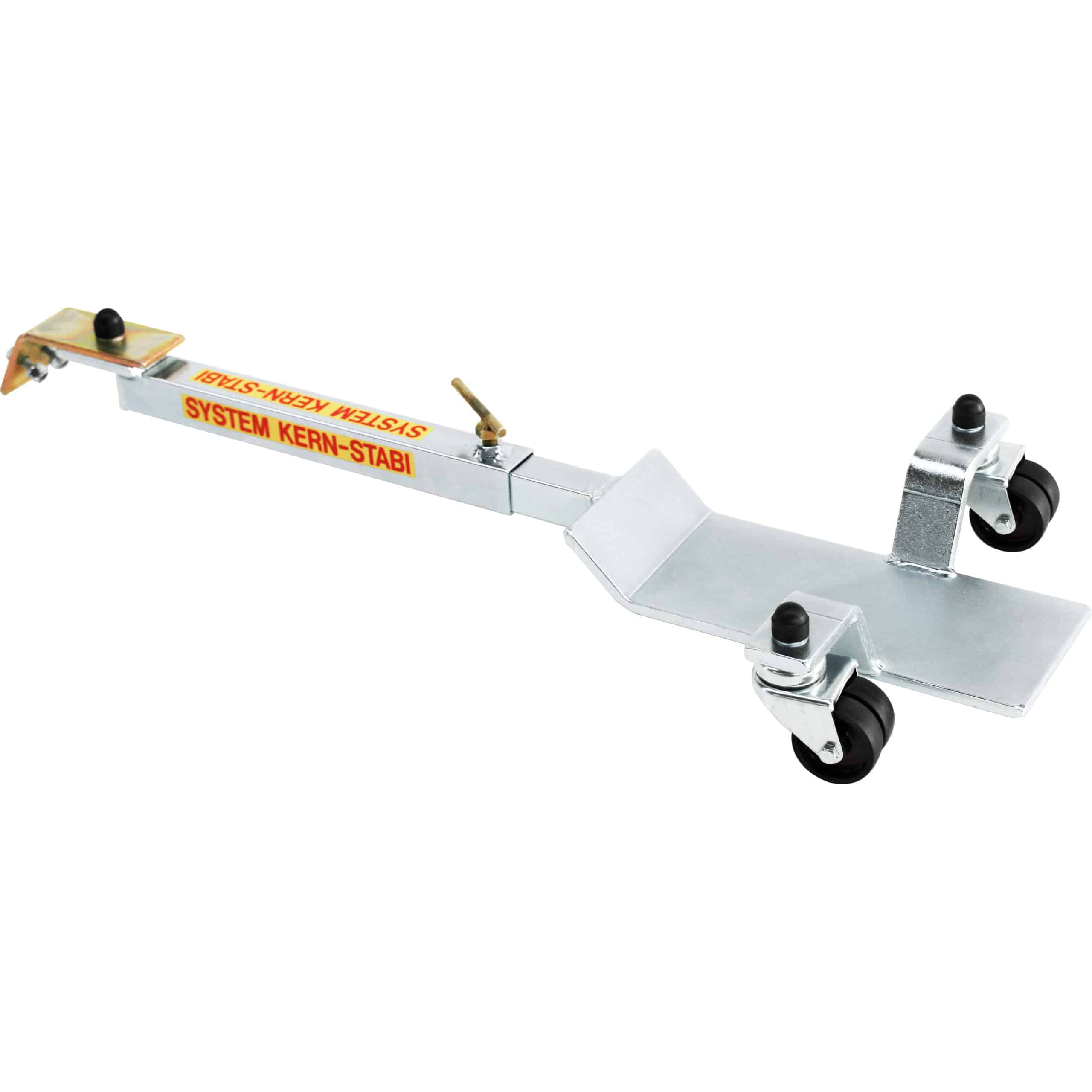

Product Description: Kern-Stabi Front Wheel Mount 2012-II for Center Stand Trolleys
The Kern-Stabi Front Wheel Mount 2012-II for Center Stand Trolleys offers an innovative solution to effortlessly move your motorcycle in all directions. Adjust the mount continuously and experience German quality.
- Compatibility for all Kern-Stabi center stand trolleys - Allows lifting the front wheel and easily moving the entire motorcycle without the front tire braking.
- Continuous Adjustment - Flexibly adapts to different wheelbases to ensure maximum adjustment to your motorcycle.
- Positioning for Easy Handling - Positioned directly behind the tire to allow easy mounting when jacking up.
- Instant Direction Changes - After jacking up, quick changes of direction are possible without effort.
- Durable Materials - Made of solid, electro-galvanized steel, it offers stability and durability in a small space.
- German Quality Wheels - Wheels ensure easy rolling even with heavy motorcycles and allow effortless direction changes.
Detailed Product Description:
Kern-Stabi Front Wheel Mount 2012-II for Center Stand Trolleys

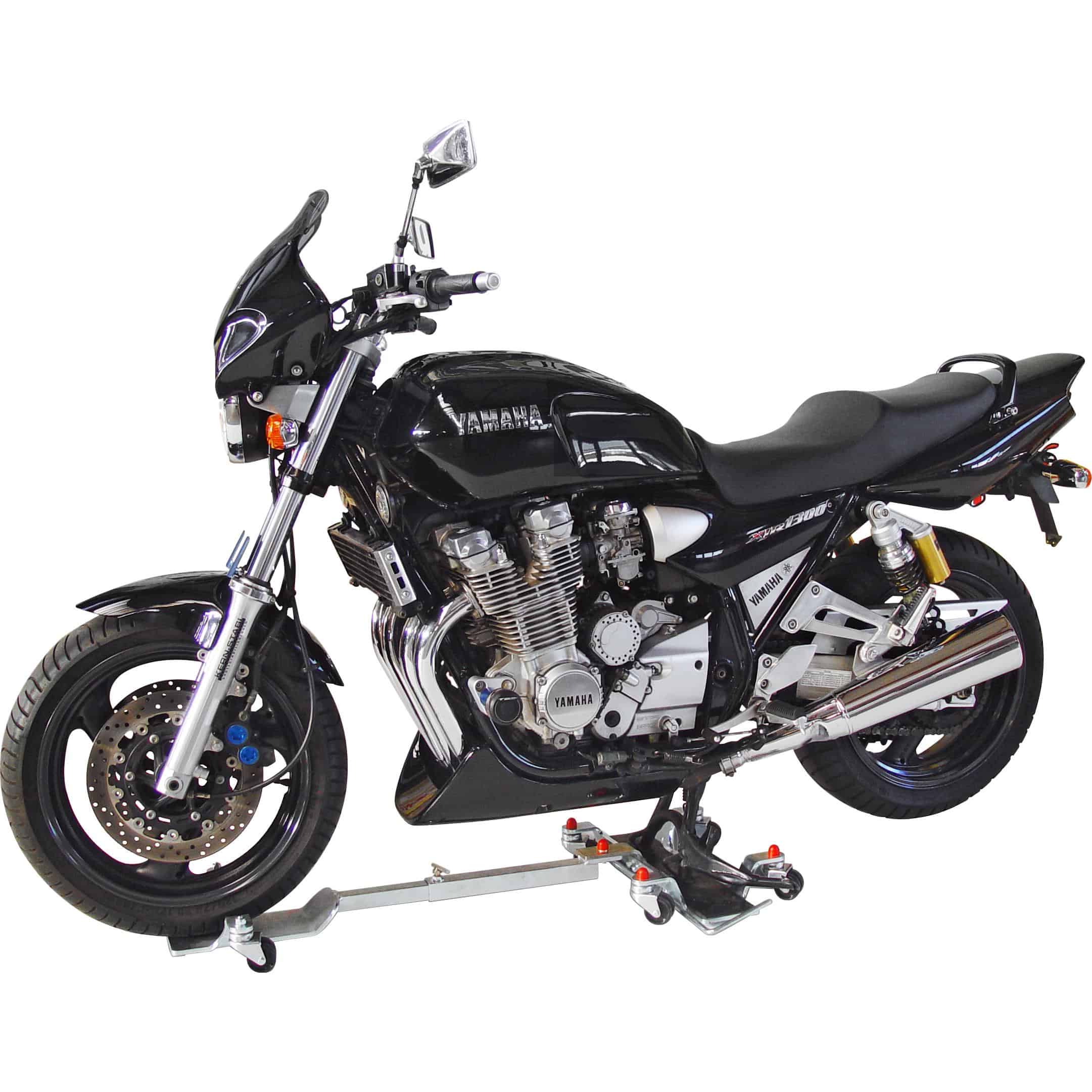

Suitable for all Kern-Stabi center stand trolleys, the front wheel is also lifted off the ground, allowing the entire motorcycle to be moved and rotated in all directions without the front tire acting as an "anchor."
Details:
- for all motorcycles that are front-heavy when jacked up on the front wheel
- can be continuously adjusted in length to different wheelbases
- positioned so that the front wheel mount stands directly behind the tire when not jacked up
- when the motorcycle is then placed on the trolley with the center stand, the front wheel is also pulled onto this extension
- immediate unrestricted direction changes in seconds after jacking up are possible
- no more maneuvering over the front wheel necessary
- German quality wheels ensure very easy rolling even with very heavy motorcycles and direction changes without much effort
- solid, electro-galvanized steel ensures stability
- easily screwed onto the center stand trolley with the included mounting parts
- thus, even in very tight spaces, there is still a place to park - e.g. across the headwall of the garage
Dimensions (approx.):
Length from screw connection to center stand trolley: 700 to 1000 mm
Width x Height (with screw heads) total: 363 x 100 mm
Length x Width parking area: 248 x 160 mm
Height parking area to ground: 17-19 mm
Ø Wheels: 50 mm
Weight: 5.835 kg
Options:
Compatible center stand trolleys (Order number 60150100200, 60150100220 or 60150100510)
Approval:
Trolleys do not need to be approved, therefore no test marks, reports, or ABEs are required.
